  3. Square 180 Degree Glass to Wall "Y" Inline Clamp

Technical Downloads

Glass Thickness: 5/16" - 1/2"

Weight Bearing (2-3 Hinges): 62-92lbs

Spec Sheet (PDF)

Cutout (PDF)

Dimensions (PDF)

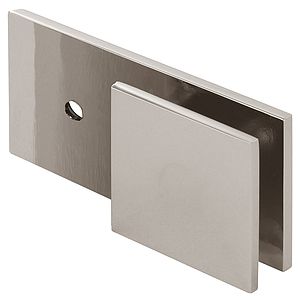

Square 180 Degree Glass to Wall "Y" Inline Clamp

Edge Profile

Color

$ 24.89 24.89 USD

$ 27.28

This combination does not exist.

Add to Cart

Modexo Glass Shower Clamps are constructed of corrosion-resistant solid brass. These clamps are used to secure fixed panels of glass for frameless shower enclosures.This 180 degree glass-to-wall "Y" inline clamp has a variety of shower door applications.

  • Includes: gaskets and mounting screws
  • Use with monolithic tempered glass
  • Clear silicone can be used to provide a clean, water-tight seal
  • 3/4" (19 mm) hole diameter required
  • Use with glass thickness from 5/16" (8 mm) to 1/2" (12 mm)

A SINGLE COMPLETE ITEM IS INCLUDED IN EACH PACK WHICH CAN BE USED AS SPLIT-FACE CLAMP.

ONE SIDE OF THE BRACKET MAY BE UNSCREWED AND REMOVED IN ORDER TO USE CLAMP AS Y-INLINE CLAMP.
